Sold

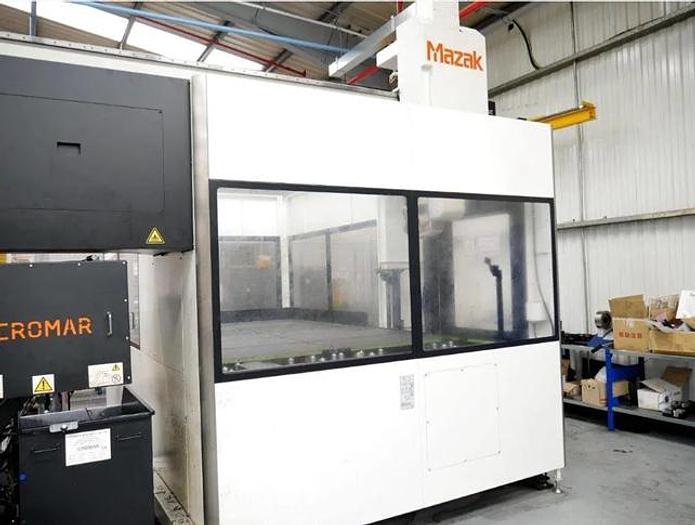

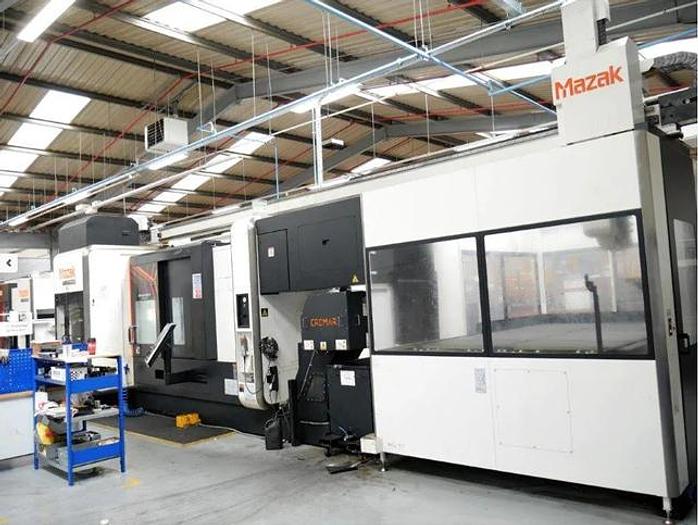

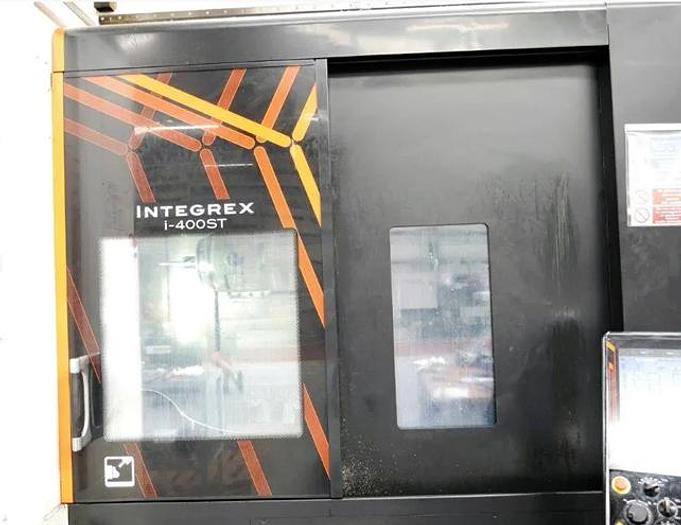

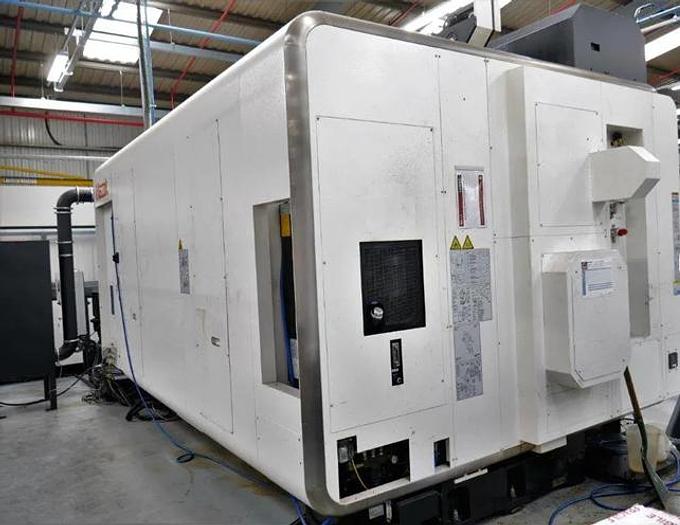

2015 MAZAK INTEGREX I-400 ST

Specifications

ManufacturerMAZAK
ModelINTEGREX I-400 ST
Year2015

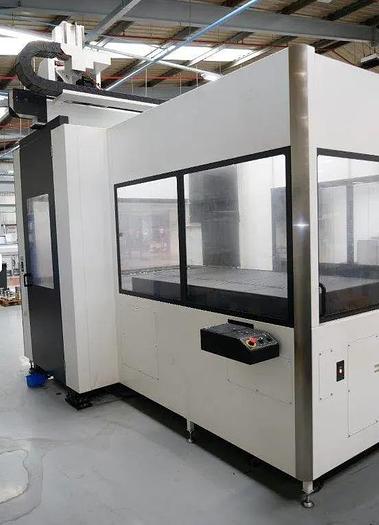

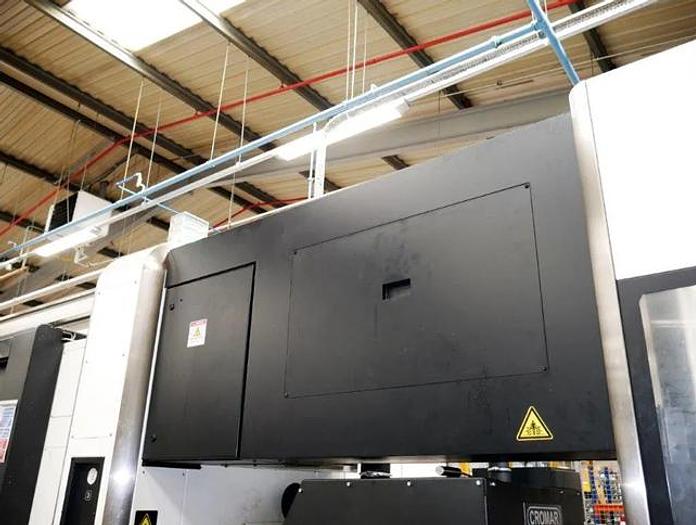

Type7-AXIS CNC TURNING CENTER + GANTRY LOADER
Condition infoExcellent

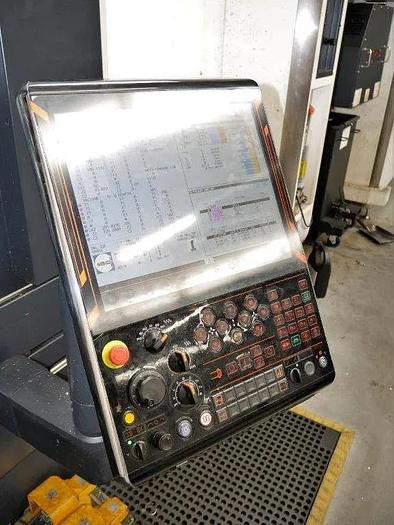

Type of controlMazak Smooth X
Distance between centers1.500 mm

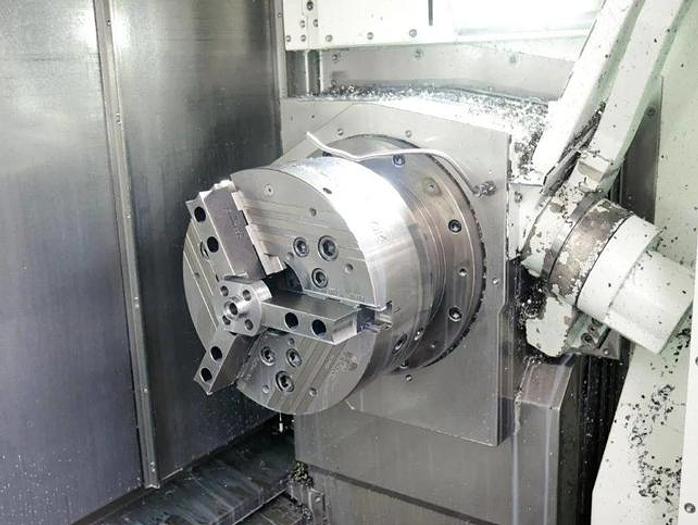

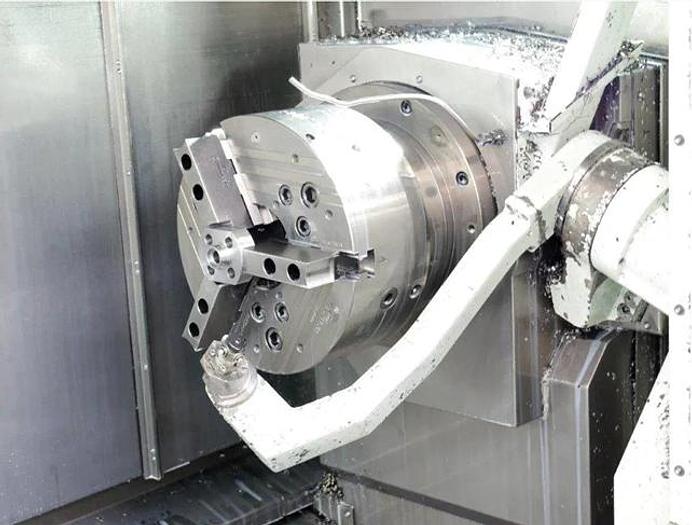

MAIN SPINDLE-

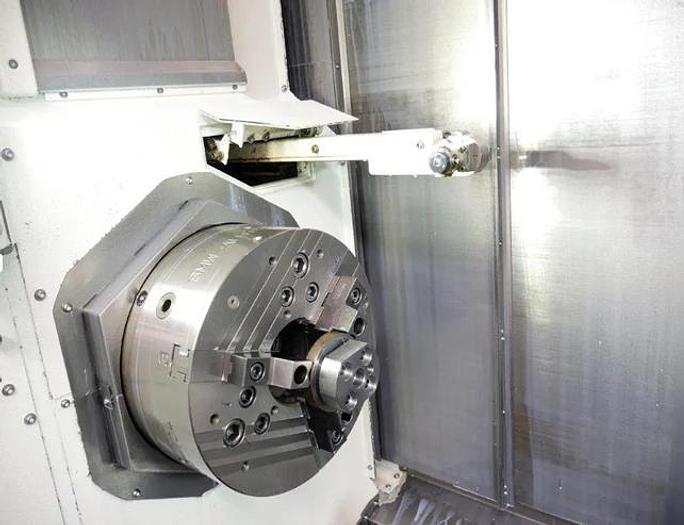

Chuck sizeØ 305 mm
Spindle boreØ 112 mm
Max. rotating speed3.300 rpm
Motor output30 Kw

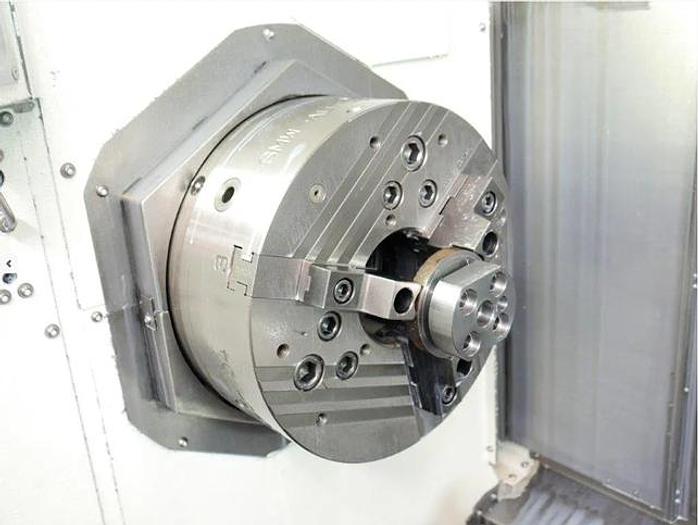

SECONDARY SPINDLE-
Chuck sizeØ 250 mm
Spindle boreØ 91 mm
Max. rotating speed4.000 rpm
Motor output26 Kw
Travel Axis X615 mm
Travel Axis Y260 mm
Travel Axis Z1.585 mm
Travel Axis X2230 mm
Travel Axis Z21.388 mm
Axis B-30 ° / + 210 °
Axis C0.0001 °
Max. machining diameter (Upper turret)658 mm
Max. machining diameter (Lower turret)420 mm

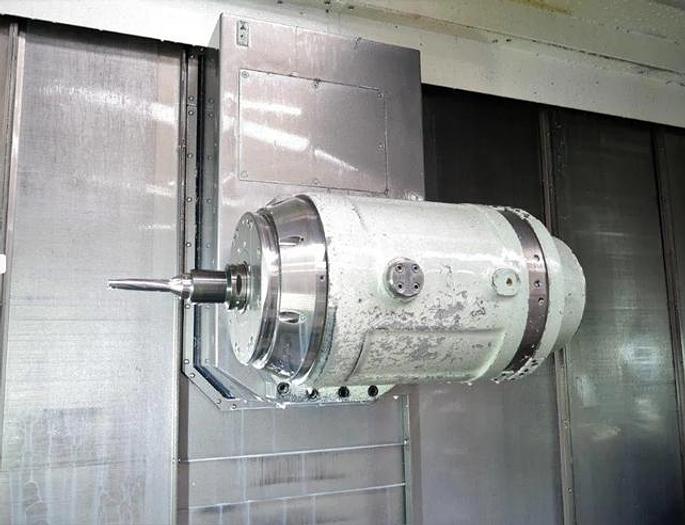

Milling spindle speed12,000 rpm
Milling spindle power22 Kw
Max. machining lenght1.519 mm

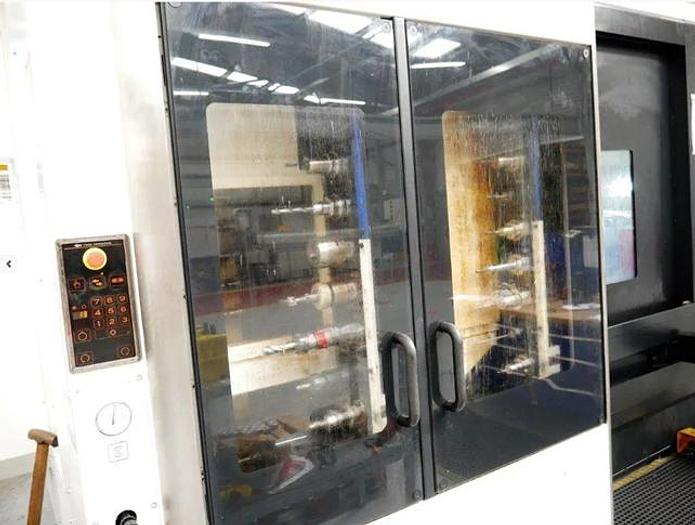

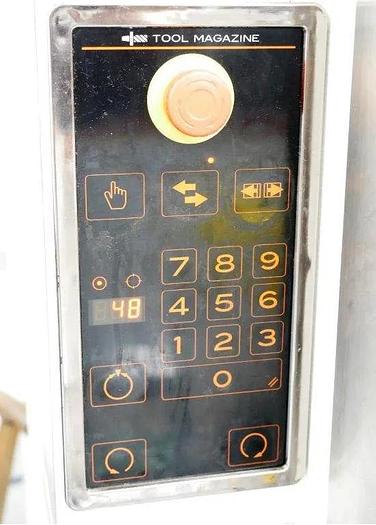

Tool magazine110 positions

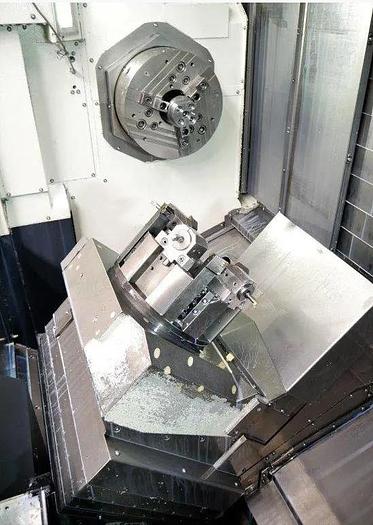

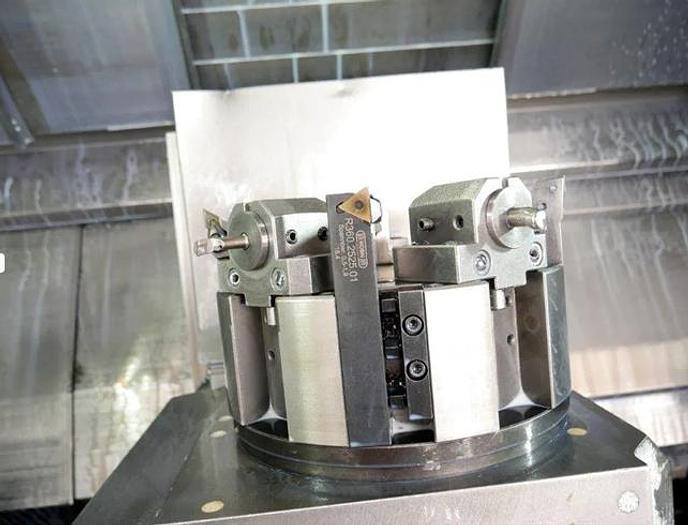

Lower turret9 positions
Upper head spindle connectionCapto C6

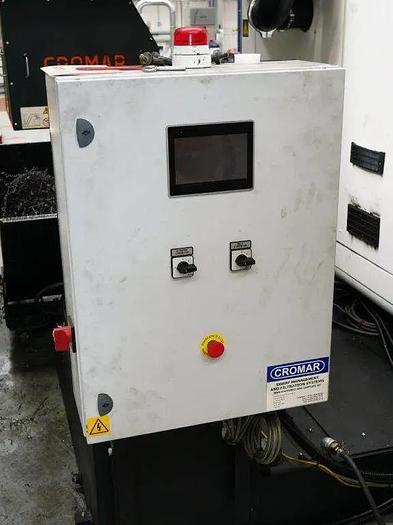

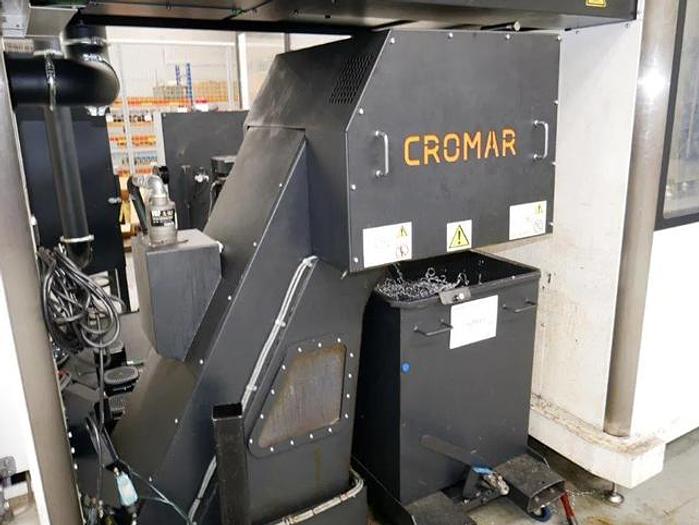

EquipmentChip conveyor
