Sold

2007 BIGLIA B 1200 Y

Specifications

ManufacturerBIGLIA
ModelB 1200 Y
Year2007
TypeCNC LATHE
ConditionUsed
StatusVery good

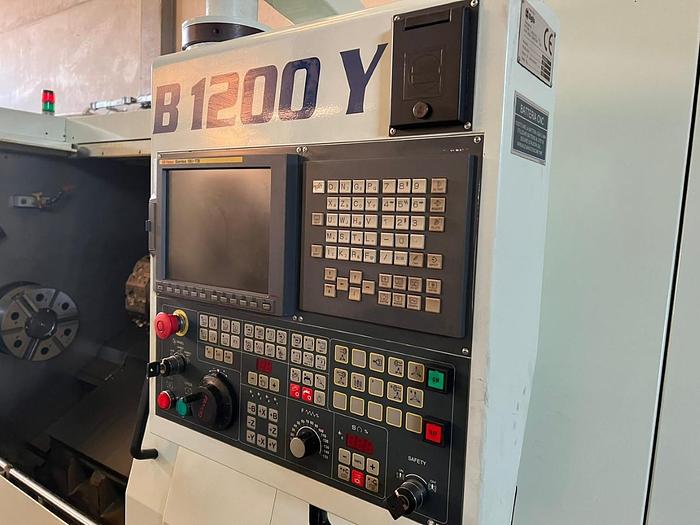

Type of controlFanuc 18i-TB
Machinable diameter from barØ 92 mm
Max diameter workableØ 410 mm
Max length workable1.315 mm
Max. Length workable850 mm
X axis travel255 mm
Y axis travel110 (+ 60 / -50) mm
Z axis travel1.315 mm
Axis C0.001 °
Rapid feedX Y Z 20-7.5-24 m / min
Main spindle speed2,800 rpm
Main spindle holeØ 111 mm
Spindle noseASA 8"
Max. Rotating diameterØ 700 mm
Self-centering diameterØ 315 mm
Main spindle motor power30 Kw
Tailstock quill stroke150 mm
Quill diameterØ 115 mm
Automatic tailstock positioning1.200 mm
Tool turret12 positions
Driven tools12 positions
Spindle speed driven tools4.000 rpm
Dimensions L x W x H5.100 x 2.000 x 2.100 mm
Weight7.250 Kg
AccessoriesChip conveyor
